Common Error
Alstar USB Blaster not detectd in Programmer

Alstar USB Blaster not detectd in Programmer

  1. If you ever encounter situation below:

Intel® Quartus® Prime Lite Edition Design Software

No Hardware found

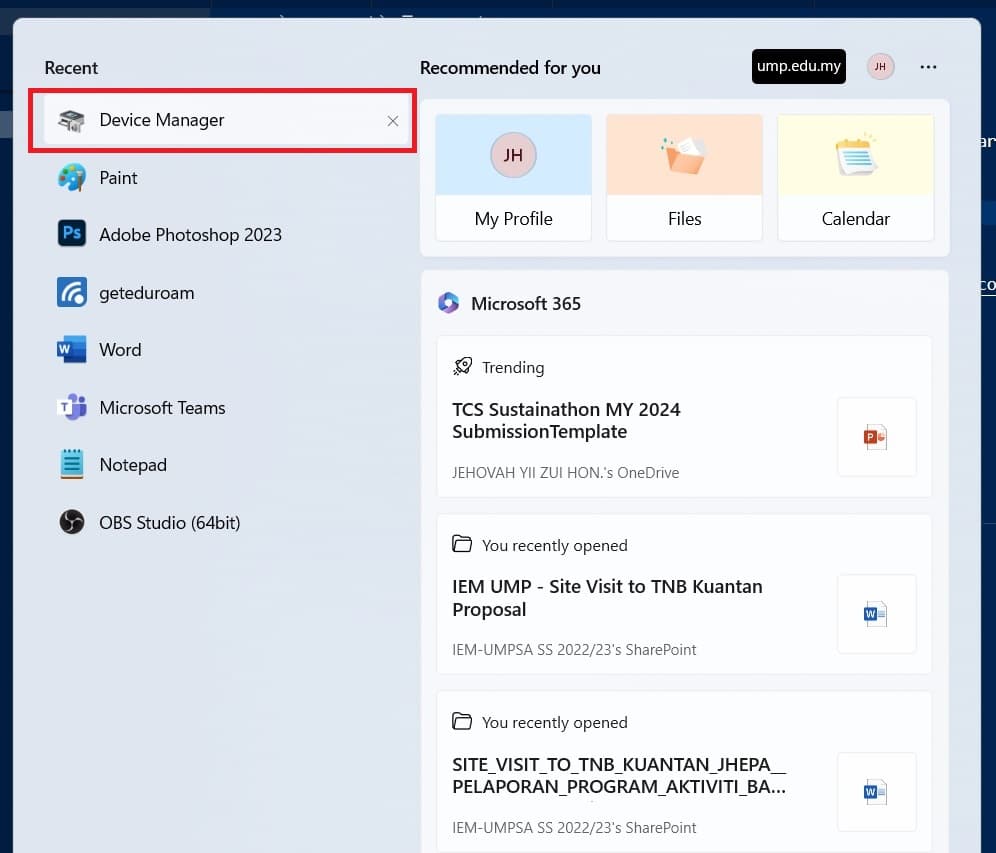

  1. Go to Device Manager > Universal Serial Bus controllers > USB-Blaster

Intel® Quartus® Prime Lite Edition Design Software

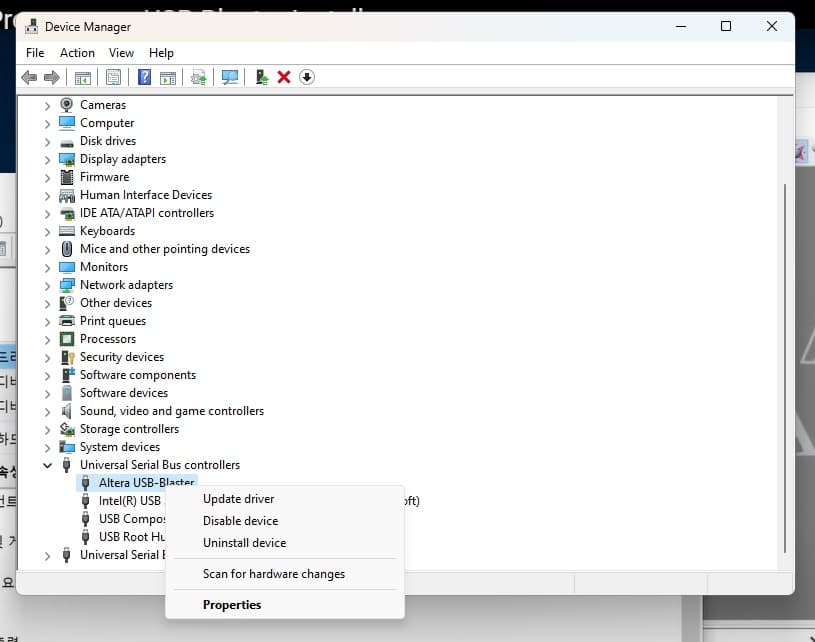

  1. Right click on USB-Blaster and select Update Driver

Intel® Quartus® Prime Lite Edition Design Software

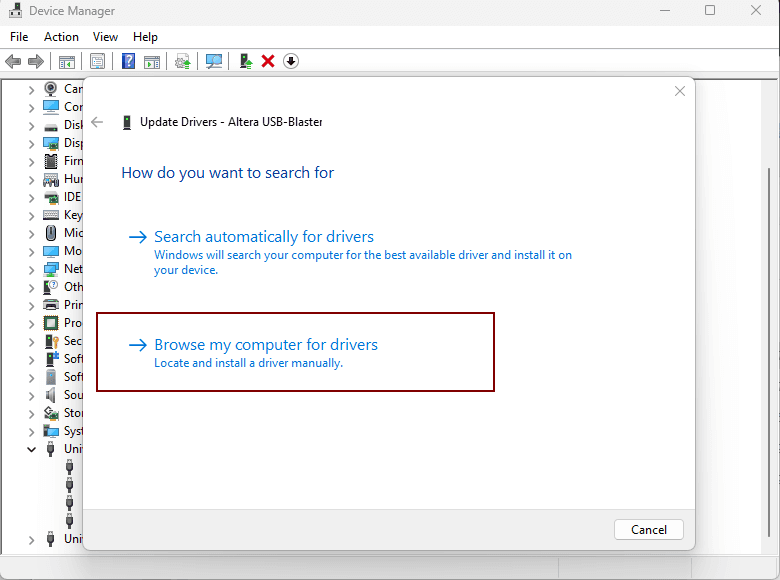

  1. Select Browse my computer for drivers

Intel® Quartus® Prime Lite Edition Design Software

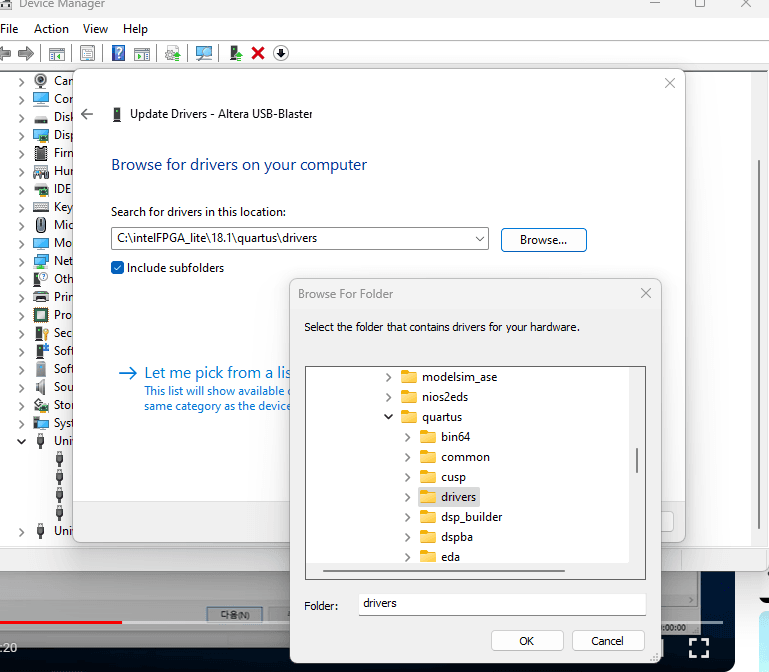

  1. In the Search for drivers in this location, select C:\intelFPGA_lite\18.1\quartus\drivers and click next

Intel® Quartus® Prime Lite Edition Design Software

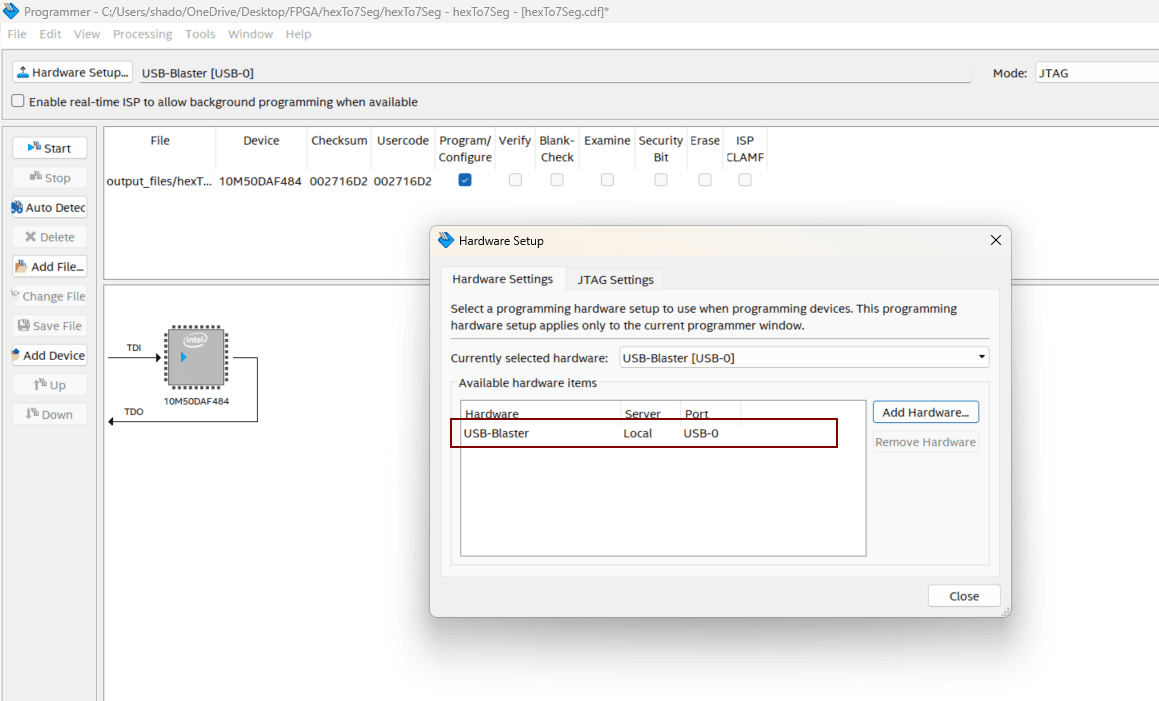

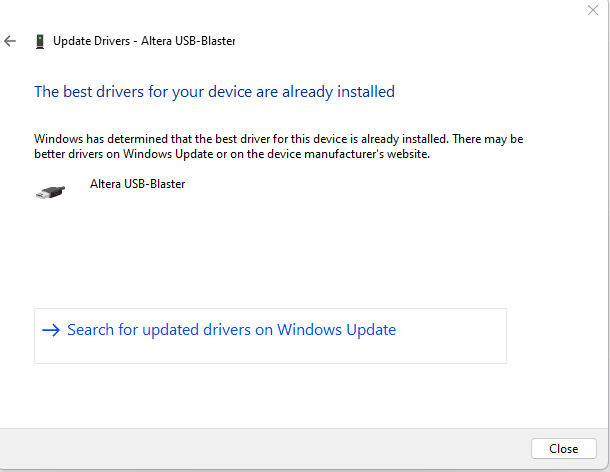

  1. Once it is successfully installed, the driver should be reflected in your Programmer

Intel® Quartus® Prime Lite Edition Design Software

Intel® Quartus® Prime Lite Edition Design Software

References

  1. QuartusII 13.0 Programmer USB Blaster Install (opens in a new tab)
