Setup a new project in Quartus Lite Software
- Launch the Quartus software, select File > New Project Wizard. The Introduction page opens

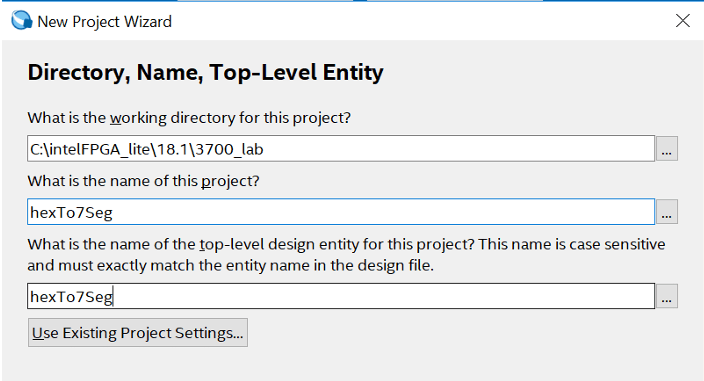

- Enter the following information for working directory, name, and top-level entity for the project
-
Select the Empty project template and click Next:
-

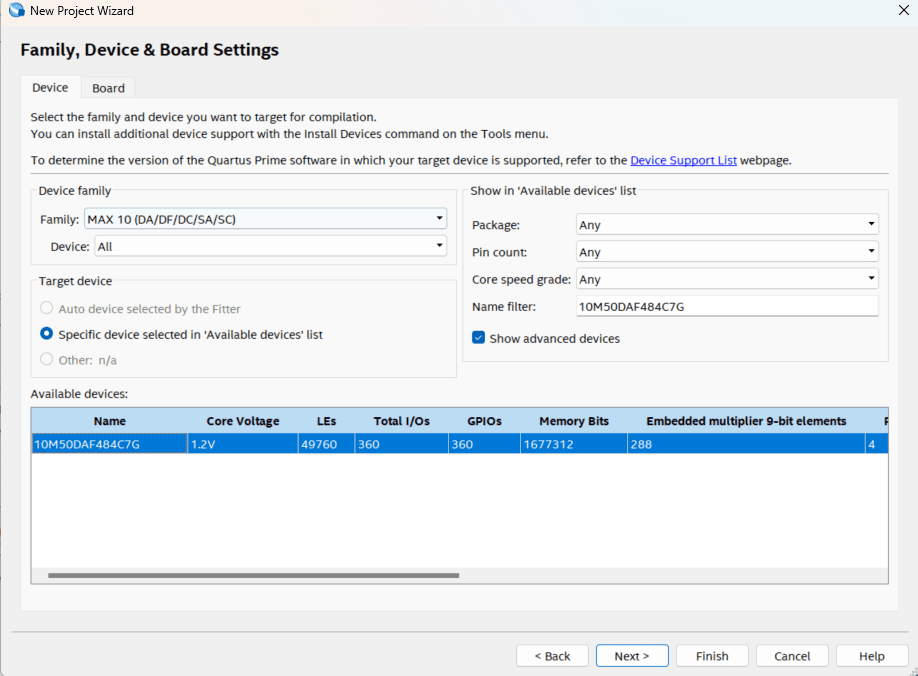

Click Next twice and navigate to the Family, Device and Board Settings. Select the specifics on the respective device target as mentioned below (Device – 10M50DAF484C7G). You can add the required Verilog files later or edit the files in the Quartus editor once the project has been setup.
-
Select the simulation Tool as ModelSim-Altera(note – this is not just ModelSim but the one with Altera) and format as Verilog HDL. Retain the other Tool selections to default.
-

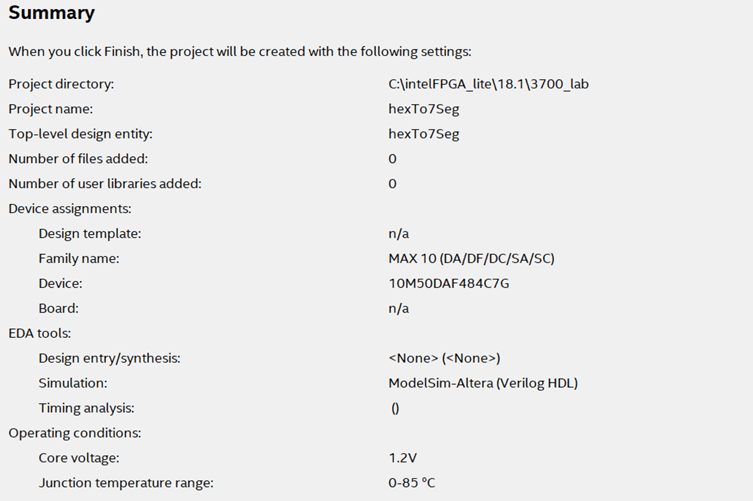

Review the new project summary page and make sure all the specifics that you entered are reflected.

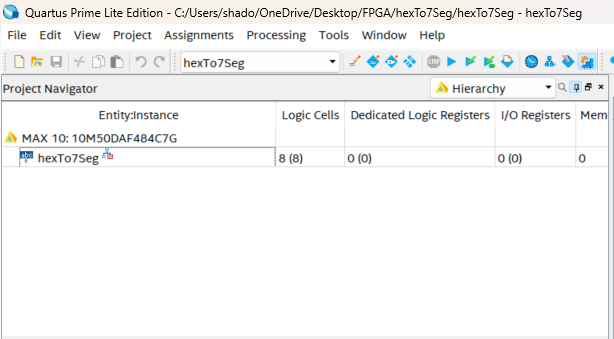

- Quartus Lite Project navigator will now reflect the instance as your top level design entity under the device name.
